Homag - FL20-06-30 10-head double end tenoner
What is for sale: Homag - FL20-06-30 10-head double end tenoner
MACHINE: 1996 HOMAG - FL20-06-30 10-HEAD DOUBLE END TENONER
CONDITION: RECENTLY TAKEN OUT OF OPERATION
LOCATION: UWMO WAREHOUSE (USA)
* Capacity long infeed chain 500 mm.
* Fully covered sound enclosure with lights.
* Control panel with LCD display.
* Set up by mechanical digital readout.
* Top pressure with driven V-belts.
* Motorized height adjustment.
* 2 column machine with 5 heads on each side.
* Width adjustment motorized on linear as well as rolling guides.

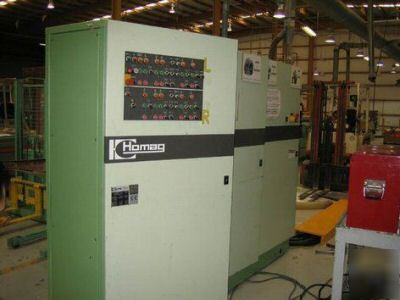

* Free standing control panel.
* Detached frequency converter.
* Feed speed variable from 10-40 m/min.
* Workpiece overhang max. 110 mm.
* Workpiece thickness 8-90 mm.
* 220 mm min. working width.
* 3000 mm maximum working width.
* Head configuration same on both sides: prescoring unit 1.5 kW at 6,000 RPM.
* Controlled with lifting device.
* Piggy backed with scoring unit.
* Universal jump trimming unit 6 kW at 6,000 RPM.
* Extended shaft to work inside the chain for grooving etc.
* 6 kW at 6,000 RPM This is the heaviest duty double end tennoner made by Homag.

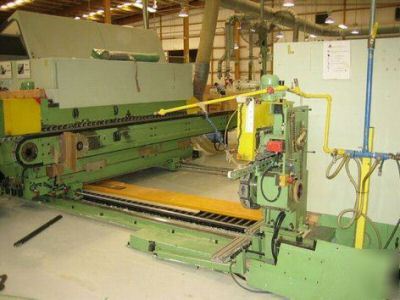

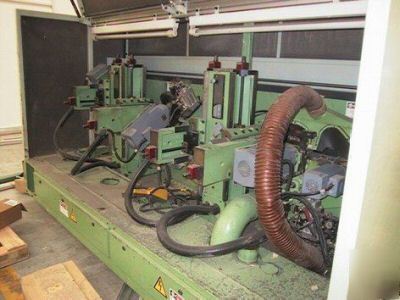

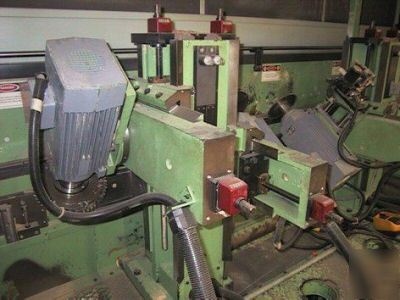

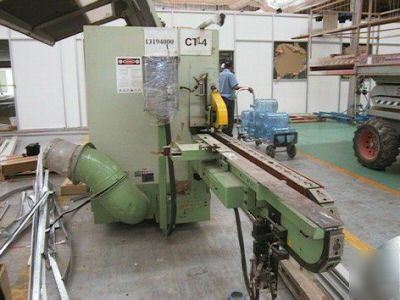

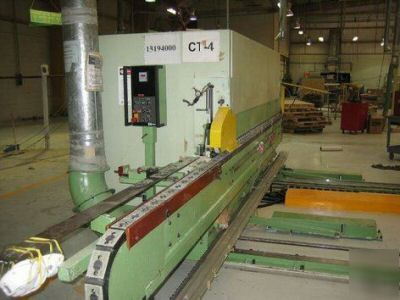

* Pictures shown are as the machine was de-commissioned in April 2005 as the company was getting out of the woodworking industry.
