Exfo burleigh wa-7100 wavemeter optical channel analyz
What is for sale: Exfo burleigh wa-7100 wavemeter optical channel analyz

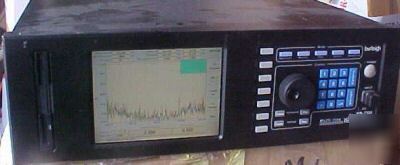

Exfo Burleigh WA-7100 Wavemeter Optical Channel Analyzer
The WA-7100 Optical Channel Analyzer employs proven scanning Michelson interferometer-based Wavemeter technology to determine the absolute wavelength of an optical signal under test by comparing its interference fringe pattern with that of a built-in HeNe laser wavelength standard. Unlike other wavelength meters, all factors that can affect wavelength measurement are accounted for, ensuring the highest possible accuracy. The absolute wavelength specification has a confidence level of 3s, meaning 99.6 % of measurements fall within specification limits. To ensure accuracy, all Wavemeter systems are traceable to recognized standards.
Combining proven scanning Michelson interferometer-based technology with advanced digital processing results in the ability to measure and differentiate the absolute wavelengths of up to 256 discrete optical signals. The accuracy of these measurements is ± 0.3 pm. What’s more, the WA-7600 can simultaneously measure the individual powers of the optical signals. EXFO offers the WA-7100 Wavemeter Multi-line Optical Channel Analyzer. Identical to the WA-7600, it offers an absolute wavelength uncertainty of ± 1.5 pm, providing a lower cost alternative.
Unlike other multi-wavelength meters, the WA-7100 provide the full optical spectrum on a clear, easy-to-read display for the most precise DWDM channel analysis. Spectral resolution is as high as 30 pm, resulting in a narrow, sharp-edged spectral response. Discrimination between closely spaced DWDM channels is easily achieved for current 100 GHz and 50 GHz channel spacing and future 25 GHz channel spacing.
The WA-7100 automatically process measurement data, providing critical DWDM system performance information. In addition to resolving the individual optical carriers and accurately confirming their wavelengths and powers, the WA-7100 calculate parameters such as channel spacing and OSNR.
* Complete DWDM Channel Analysis
* Measures Wavelength, Power and OSNR
* Simultaneous Multi-Channel Measurements
* Continuous Calibration with Built-In Laser
* High Precision Spectral Analysis
* GPIB and RS-232 Interfaces
Fully operational. Email me at Peter_Wise@parts-recycling.com for PDF manual or data sheet to review.
Peter_Wise@parts-recycling.com (Peter Wise) (email hidden).
