Bird 8329-300 2KW tenuline rf coaxial attenuator


What is for sale: Bird 8329-300 2KW tenuline rf coaxial attenuator

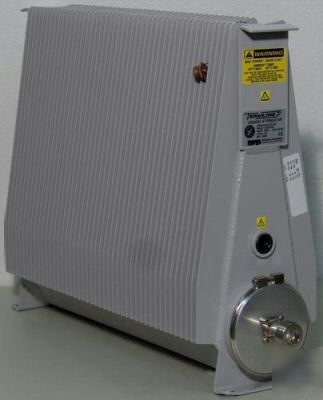

Bird Electronics 8329-300 2kW Tenuline RF Coaxial Attenuator with LC(F) and N(F) Connectors, Oil-Cooled
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Bird-Electronics and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The unit is in like-new condition.
List Price is: $2190.00 NEW from Bird (with P/N: 4240-031 - QC Connector, LC(F) on Input and P/N: 4240-062 - QC Connector, N(F) on Output)
The Unit's Serial Number Tag Reads:
Link to the Manual: Bird 8329-300 Tenuline Attenuator Manual
* 2 kW, Oil-Cooled, LC (F) and N (F)
Ambient Temperature Range: -40°C to +45°C
Connector: LC (F) and N (F) (There is believed to be a P/N: 4240-031 - QC Connector, LC(F) on Input and there is a P/N: 4240-062 - QC Connector, N(F) on Output)
Frequency Range and VSWR: Input 1.1 max. DC to 500 MHz
Coolant: 2.9 gal. (11 liters) silicone oil
Nominal Size: 23 15/16" L x 17 3/16" H x 7 1/8" W (595 x 437 x 181 mm)
Operating Position: Horizontal only
Power Rating: 2000 W continuous
For More Pictures Please Click the Following:
* Picture 5 - Input Connector
* Picture 6 - Output Connector
* Picture 7 - Calibration Tag
* Picture 8 - Serial Number Tag
