2 nozzle bottling bottler bottle filler filling machine
What is for sale: 2 nozzle bottling bottler bottle filler filling machine
(not all items shown are included...please read all information)
PLEASE READ ALL INFORMATION...
THIS MACHINE IS AVAILABLE IN 2 OPTIONS: AUTOMATIC or SEMI-AUTOMATIC

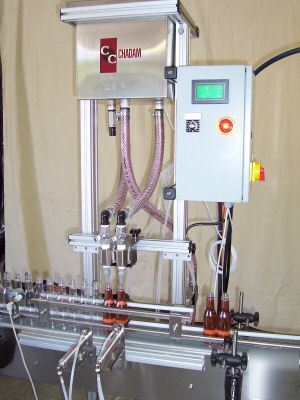

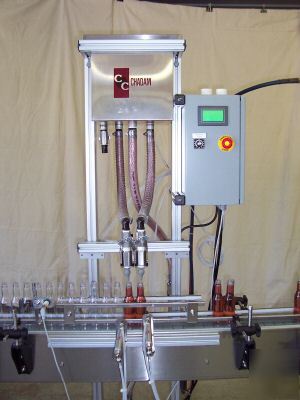

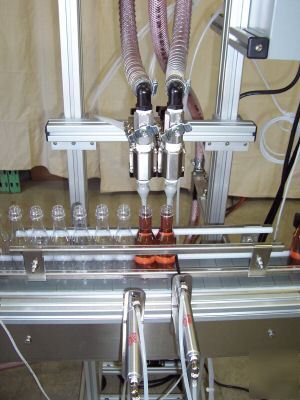

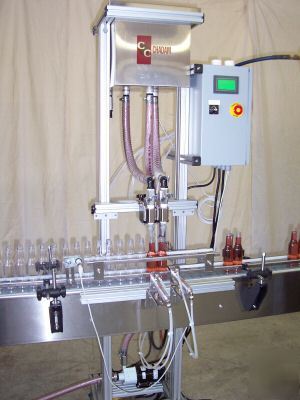

This is a dual head timed gravity liquid filling machine for water thin products. This new entry level filler will satisfy your needs as a low cost , user friendly, high quality filling machine.
Liquid product can be filled near its source, such as a mixing tank or storage resevoir, or pumped from source by the included supply pump, appropriately sized for your needs. Product is pumped to the overhead filling reservoir, controlled automatically on demand by reservoir float device. Product is then filled into 2 containers simultaneously using liquid's best source of motivation; gravity.
For Automatic systems, bottle indexing is controlled by electronic sensor or container available detector. (Automatic system component upgrades, such as feed/accumulation tables and conveyors are available; see Fillhelper's other store listings) *
For Semi-Automatic operations, a 60" slide table with adjustable guide rails and foot switch are provided.
(See notes below for differing components depending on Automatic or Semi-Automatic System)
* Anodized Aluminum Frame with castors and leveling pads (stainless steel as an optional upgrade)
* HDPE Product Resevoir (stainless steel as an optional upgrade)
* Product Reservoir Control Float

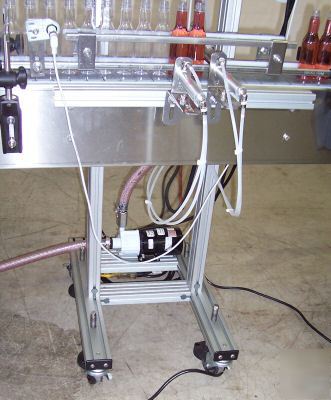

* Product Supply Pump (appropriately sized for your needs)
* Panasonic Touch Screen Control Panel
* Automatic Pin Indexing (not included for semi-automatic systems)
* Container Available Eye/Sensor (not included with semi-automatic systems)
* Tooless Height Adjustments
* Able to Handle Water Thin, Foamy or Non-Foamy Products

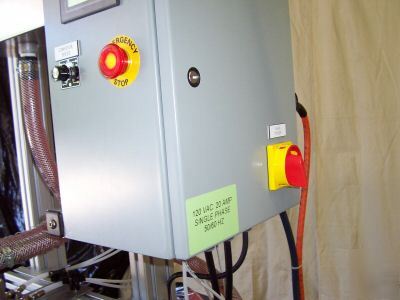

* NEMA-12 Painted Control Box
* 1 Year Warranty on Non-Wear Parts
NOT RECOMENDED FOR ABRASIVE/CORROSIVE LIQUIDS
NOT TO BE USED FOR ANY FLAMMABLE LIQUIDS
Not all items shown are included. This is for the filling unit, filler frame, product supply pump, and HDPE product reservoir. Product reservoir as shown in stainless steel is available as an upgrade.
Semi-Auto system does not include indexing controls, container available eye, or conveyor controls. A 60" slide table for bottle fill placement, and an operator's foot pedal are included instead.
*This unit is base priced for start-up operations, but can be built to order and modified for fully automated filling line systems. Please feel free to contact us about how we can serve your specific needs.
This Filling Machine is BUILT TO ORDER!!
Proudly Designed & Manufactured in the United States of America!!
