H&s 310 bu pto drive, pto driven manure spreader


What is for sale: H&s 310 bu pto drive, pto driven manure spreader

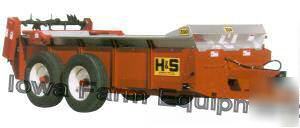

Brand New H&S 310 Bushel PTO Driven Manure Spreader.
We sell H&S Products with Confidence! H&S is the Established, Top Brand of Agricultural Equipment and of Course the Top Brand of Manure Spreaders! Expect This H&S Manure Spreader and ALL of the Equipment we Sell to be Top Quality Equipment that will Serve you well for a Lifetime and Provide a Great Resale Value Too!
This Listing is For a Complete 310 Bushel, PTO Driven, Apron Style Manure Spreader with the Following Features:
* Heavy Duty Structural 5" Channel Iron Frame and Pole with Heavier Floor Supports and Wrap Around Front Corners, Rear Side Panels are Slanted for Wider Spread.
* 2-1/4" Stressproof Spindle.
* 11" X 22.5" Standard Wheels
* Poly Bonded to Marine Quality Plywood for Floor, Sides, Front Panel, and Both Sides of the Hydraulic Gate.
* Woodlife Treated Apron Side Spacers.
* Side Flares and Front Splash Guard Made From Culvert Grade Galvanized Steel, Thicker Than Normal Galvanizing.
* Hydraulic Endgate with 3/8" ID Hydraulic hose for Faster Operation in Cold Weather.
* Full Width Bottom Cylinder Mount Through Frame.
* Spreader is Set Up for Optional Second Cylinder.
* T-Rod Apron Chain for Longer Life.
* 1-1/2" Stressproof Cold Rolled Drive Shaft.
* 1-1/4" Drive Train Shaft.
* Larger Beater Drive Shaft with 6 Splines.
* Heavy Duty PTO Shaft with Plastic Shields.
* Shear Bolt Protection for The Main Apron and The Beater Drive Train.
* Standard Hydraulic Endgate.
* Hardened Slide for Idlers Eliminates Freeze Up and Chains Jumping Off Sprockets.
* Side Winding Jack with Transport Mount.
* Heavy Duty 29" Dimaeter Beater with Improved Spread Pattern and Larger Blade Holders for More Strength. There Are 14 Replaceable Beater Blades, Each with 4 Bolt Mounting. There Are 2 Types of Blades, Blunt Blades for Wide Spread and Sharp, Ripper Blades for Cutting andShredding. Side Wiper Blades are Also Standard.
* Grease Fittings for Relubing.
* Drive Shaft with Replaceable Bronze Bushings On Detatchable Bearing Mounts.
* Apron Tightener Bolts On Outside Frame.
* Apron Drive Sprockets 6 Tooth High Grade Iron Manganese.
* Four Jaw Beater Shut-Off Clutch.
* Carriage Bolts For Easier Clean Up.
* Two Speed Gear Box That Contains Beater Shut-Off and Worm Gear Drive Enclosed in a Tow Piece Case. Shifting is All Done in The Enclosed Gearbox.
* Acid Resistant Rubber on Front Panel, Rear Pan & Hydraulic Endgate.
* Different Speed Sprockets For Apron Drive.
* Unloading Speeds @540RPM's:
* 8'-8 1/2" Per Minute in High Speed.
* 4'-8 1/2" Per Minute in Low Speed.
* Top of Flare Width is 68".
* Overall Length is 20' 5 1/2".
* Overall Loading Height is 51 1/2".
* Overall Width with Standard Tires is 97".
* Standard Tire Size is 11" X 22.5".
* Main Apron Chain is T-Rod Type.
* Struck Level Capacity is 185 Bushels.
* Heaped Capacity is 310 Bushels.
* Box Construction is Corrosion Resistant Galvanized Steel.
* Floor Construction is One Piece Bonded Poly with a Galvanized Steel Sub-Floor.
* 2 Speed Heavy Duty Gearbox.
* Weight with Tires is 4190lbs.
Plus, We are Glad to Say H&S Products are MADE IN THE USA!!!
Local Pick-Up or Flatbed Delivery Only. Estimated Flatbed Delivery is $1.35 per Loaded Mile.
