STDV710A evaluation board for st STR710FZ2T6


What is for sale: STDV710A evaluation board for st STR710FZ2T6

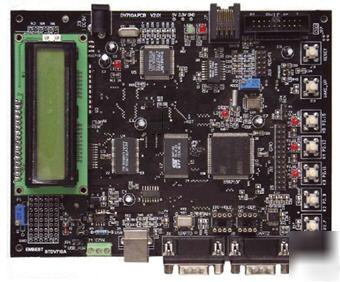

STDV710A Evaluation Board for ST STR710FZ2T6
STDV710A Evaluation Board for ST STR710FZ2T6
- A Super-integrated Evaluation board for ST Microelectronic STR710FZ2T6 Microcontroller (STR710 series)
- RS232, USB device, Ethernet, CAN, LCD, SPI, I2C, ...
- Plenty of software examples, all in source code
STDV710Aâ„¢ Evaluation Board is intended as a low cost evaluation platform for STR710F-Z2T6 devices. The board expands all features of STR710F-Z2T6 microcontroller and integrates various additional peripherals including 512k Bytes SRAM and 2M bytes flash on EMI, LEDs, buzzer, buttons, LCD, Ethernet, CAN, SPI, I2C, USB device interface to create a versatile stand-alone test platform. Users can fully take use of the board to meet your development requirements and applications. The STDV710A Evaluation Board Kit is a complete development environment contains an evaluation board, a JTAG debugger interface, a suite of software tools and a plenty of sample programs for embedded development.
Ø Working temperature: -40~+85 Celsius
Ø Processor : STR710F-Z2T6 with embedded 272k Bytes (256k+16k) FLASH memory and 64k Bytes SRAM memory
Ø EMI SRAM: 256k x 16 bit, EMI Nor Flash: 1M x 16 bit
Ø 10M Ethernet interface (CS8900)
Ø USB2.0 full speed (12Mbs) interface
Ø CAN2.0 communication interface with CAN driver-chip
Ø UART0 and UART2 with 2 RS232 ports (can interconnect to each other for RS232 communication experiment)
Ø Serial Peripheral Interface- SPI (flash chip is able to plug in and out for replacement)
Ø II-C interface (EEPROM chip is able to plug in and out for replacement) and HDLC interface re-use
Ø LCD interface(16x2 Character LCD or 128x64 Dot-matrix LCD)
Ø 5 LED indicator light: one for power, one for standby, three others are general used
Ø 4 channel ADC and 1 on-board regulator (ADC experiment)
Ø 32 CPU multi-functional re-used I/O expansion (HDLC, Smart Card,etc.)
Ø IAP (In Application Programming) function
Ø A standard 20-pin Debug-JTAG connector
STR710F Series Microcontroller Function Block Diagram
3.0 to 3.6V (optional 1.8V for core)
We provides plenty of software examples for this STDV710A evaluation board, all in source code. Each program has two versions to correspond respectively with ADS and IDE. Separately saved under the “ADS” and “ ”sub-directories”. The structure of the directories is as below:
All source codes under ADS environment
communicate with another device test program
Common file including driver modules of main peripheral equipments
Source code porting by LwIP from STR71x
Driver modules of STR71x on-chip peripherals
STR71x USB software library ( including a USB mouse demonstration )
Ethernet controller test program
Low-power mode and wake-up test program
Program source code under IDE environment (structure of sub-directories similar to that under ADS environment )
Ø 1x STDV710A Evaluation Board
Ø 1x DC5V/1000mA Power supplier
- user manual, circuit schematic drawing, datasheet
- STR7xx development documentations
