Pci-7200 - 32CH high-speed fastest digital i-o card
What is for sale: Pci-7200 - 32CH high-speed fastest digital i-o card

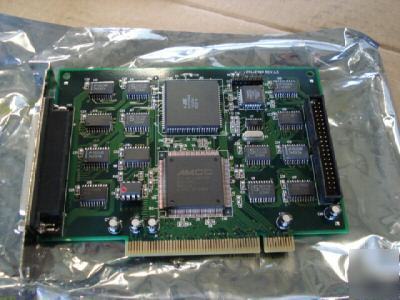

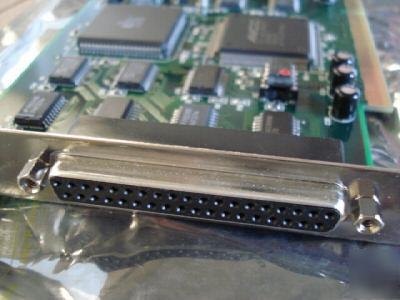

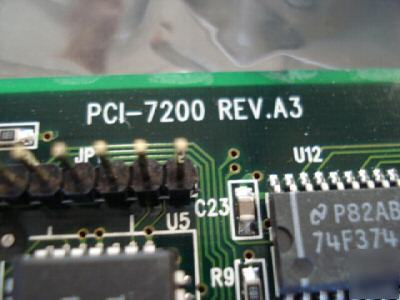

NEW PCI-7200 - 32ch High-Speed Fastest Digital I-O Card
The PCI-7200 is a 32-bit digital input/output card. It performs high-speed data transfers using Direct Memory Access (DMA) through a 32-bit PCI-bus. Applications include: interfacing to high speed peripherals, high speed data transfer (from one PC to another), digital pattern generation/recognition, printer/plotter interface, interface to high speed A/D & D/A etc.
* 32-bit PCI bus form factor
* Transfer up to 12M Bytes per second*
* On-board internal timer pacer trigger
* Internal timer controls input sampling rate
* Internal timer controls digital output rate
* ACK and REQ for handshaking
* On-board FIFO for both digital input and output
* Multiple interrupt sources are selectable by software
32 TTL compatible inputs and outputs
Low: Max. +0.5V at 8.0mA (sink)
High: Min. 2.7V at 0.4mA (source)
32-bit timer (two 16-bit counter cascaded together)
One 16-bit counter with a 2MHz time base
16 consecutive address locations
Compact size, only 98(H) x 173(L) mm
